Benchmark

This user guide shows how to run benchmarks against a vLLM model server deployment by using both Gateway API Inference Extension, and a Kubernetes service as the load balancing strategy. The benchmark uses the Inference Perf tool to generate load and collect results.

Prerequisites

Deploy the inference extension and sample model server

Follow the getting started guide to deploy the vLLM model server, CRDs, etc.

Note: Only the GPU-based model server deployment option is supported for benchmark testing.

[Optional] Scale the sample vLLM deployment

You are more likely to see the benefits of the inference extension when there are a decent number of replicas to make the optimal routing decision.

kubectl scale deployment vllm-llama3-8b-instruct --replicas=8

Expose the model server via a k8s service

To establish a baseline, expose the vLLM deployment as a k8s service:

kubectl expose deployment vllm-llama3-8b-instruct --port=80 --target-port=8000 --type=LoadBalancer

Run benchmark

The inference perf tool works by sending traffic to the specified target IP and port, and collecting the results. Follow the steps below to run a benchmark against k8s and inference gateway. Multiple benchmarking instances can be deployed to run benchmarks in parallel against different targets.

Parameters to customize:

For more parameter customizations, refer to inference-perf guides

  • benchmark: A unique name for this deployment.
  • hfToken: Your hugging face token.
  • config.server.base_url: The base URL (IP and port) of your inference server.

Storage Parameters

Note: Currently inference-perf outputs benchmark results to standard output only, and results will be deleted once pod is finished running the job unless the storage block is explicitly set to use cloud storage (GCS or S3).

By default, reports are saved locally but lost when the Pod terminates.

storage:
  local_storage:
    path: "reports-{timestamp}"       # Local directory path
    report_file_prefix: null          # Optional filename prefix

Use the google_cloud_storage block to save reports to a GCS bucket.

storage:
  google_cloud_storage:               # Optional GCS configuration
    bucket_name: "your-bucket-name"   # Required GCS bucket
    path: "reports-{timestamp}"       # Optional path prefix
    report_file_prefix: null          # Optional filename prefix

🚨 GCS Permissions Checklist (Required for Write Access)

  • IAM Role (Service Account): Bound to the target bucket.

    • Minimum: Storage Object Creator (roles/storage.objectCreator)
    • Full: Storage Object Admin (roles/storage.objectAdmin)

  • Node Access Scope (GKE Node Pool): Set during node pool creation

    • Required Scope: devstorage.read_write or cloud-platform

Use the simple_storage_service block for S3-compatible storage. Requires appropriate AWS credentials configured in the runtime environment.

storage:
  simple_storage_service:
    bucket_name: "your-bucket-name"   # Required S3 bucket
    path: "reports-{timestamp}"       # Optional path prefix
    report_file_prefix: null          # Optional filename prefix

🚨 S3 Permissions Checklist (Required for Write Access):

  • IAM Role (Service Account): Bound to the target bucket.
    • S3 Write/Upload IAM Role: Bound to the target bucket for object creation
    • Action: s3:PutObject

Steps to Deploy

Check out the repo.

git clone https://github.com/kubernetes-sigs/gateway-api-inference-extension
cd gateway-api-inference-extension/benchmarking

Get the target IP.

The examples below shows how to get the IP of a gateway or a k8s service.

# Get gateway IP
GW_IP=$(kubectl get gateway/inference-gateway -o jsonpath='{.status.addresses[0].value}')
# Get LoadBalancer k8s service IP
SVC_IP=$(kubectl get service/vllm-llama3-8b-instruct -o jsonpath='{.status.loadBalancer.ingress[0].ip}')

echo $GW_IP
echo $SVC_IP

Deploy Benchmark Tool

Tip: Update the stages in the config to request rates that best suit your benchmark environment.

export PORT='<YOUR_PORT>'
export HF_TOKEN='<YOUR_HUGGINGFACE_TOKEN>'
helm install igw-benchmark inference-perf/ -f benchmark-values.yaml \
--set hfToken=${HF_TOKEN} \
--set "config.server.base_url=http://${GW_IP}:${PORT}"

export PORT='<YOUR_PORT>'
export HF_TOKEN='<YOUR_HUGGINGFACE_TOKEN>'
helm install k8s-benchmark inference-perf/ -f benchmark-values.yaml \
--set hfToken=${HF_TOKEN} \
--set "config.server.base_url=http://${SVC_IP}:${PORT}"

Clean Up

To uninstall the deployed charts:

helm uninstall igw-benchmark k8s-benchmark

Post Benchmark Analysis

Wait for benchmark to finish and download the results. Follow inference-perf guides on how to access logs. At this moment logs are deleted from the pod if using local storage.

Benchmarking Script to Download Logs from Cloud Storage

If storing results in GCS or S3, you can use the download-results.bash script.

Use the benchmark_id environment variable to specify what this benchmark is for. For instance, inference-extension or k8s-svc.

benchmark_id='k8s-svc' ./download-results.bash <'gcs'|'s3'> <BUCKET> <FOLDER>

benchmark_id='inference-extension' ./download-results.bash <'gcs'|'s3'> <BUCKET> <FOLDER>

After the script finishes, you should see benchmark results under ./benchmarking/output/default-run/k8s-svc/results/json/<GCS_FOLDER>.

Tips

  • When using a benchmark_id other than k8s-svc or inference-extension, the labels in ./tools/benchmark/benchmark.ipynb must be updated accordingly to analyze the results.
  • You can specify run_id="runX" environment variable when running the ./download-benchmark-results.bash script. This is useful when you run benchmarks multiple times to get a more statistically meaningful results and group the results accordingly.

Advanced Benchmark Configurations

Refer to the inference-perf guides for a detailed list of configuration knobs.

The following is a list of advanced configurations available.

Guides Config Directory Config(s)
Prefix Cache Aware Guide prefix-cache-aware benchamrking/prefix-cache-aware high-cache-values.yaml low-cache-values.yaml

Analyze the results

This guide shows how to run the jupyter notebook using vscode after completing k8s service and inference extension benchmarks.

  1. Create a python virtual environment.

    python3 -m venv .venv
source .venv/bin/activate

  2. Install the dependencies.

    pip install -r ./tools/benchmark/requirements.txt

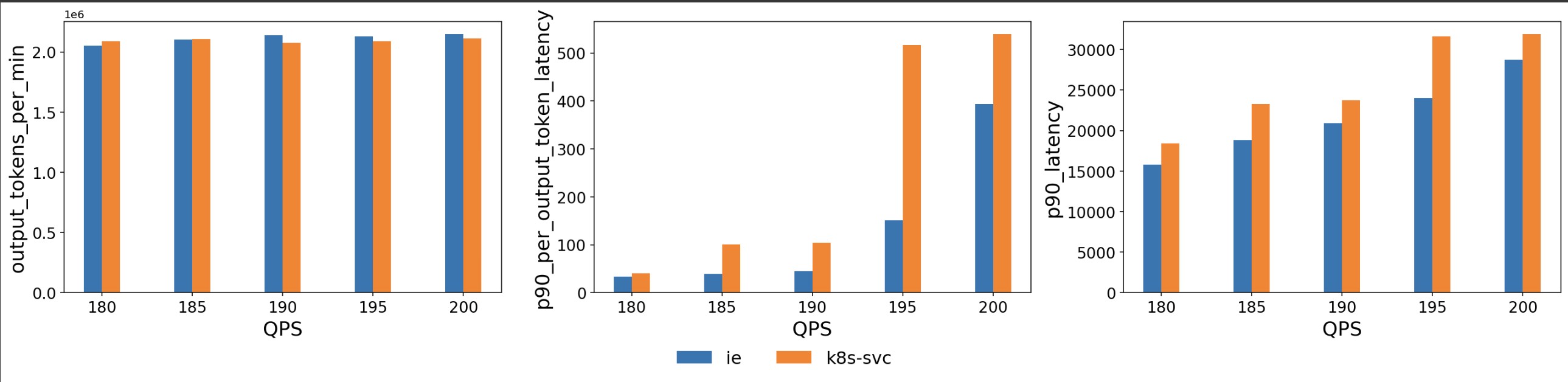

  3. Open the notebook ./benchmarking/benchmark.ipynb, and run each cell. In the last cell update the benchmark ids withinference-extension and k8s-svc. At the end you should see a bar chart like below where "ie" represents inference extension. This chart is generated using this benchmarking tool with 6 vLLM (v1) model servers (H100 80 GB), llama2-7b and the ShareGPT dataset.

    alt text
